Usage#

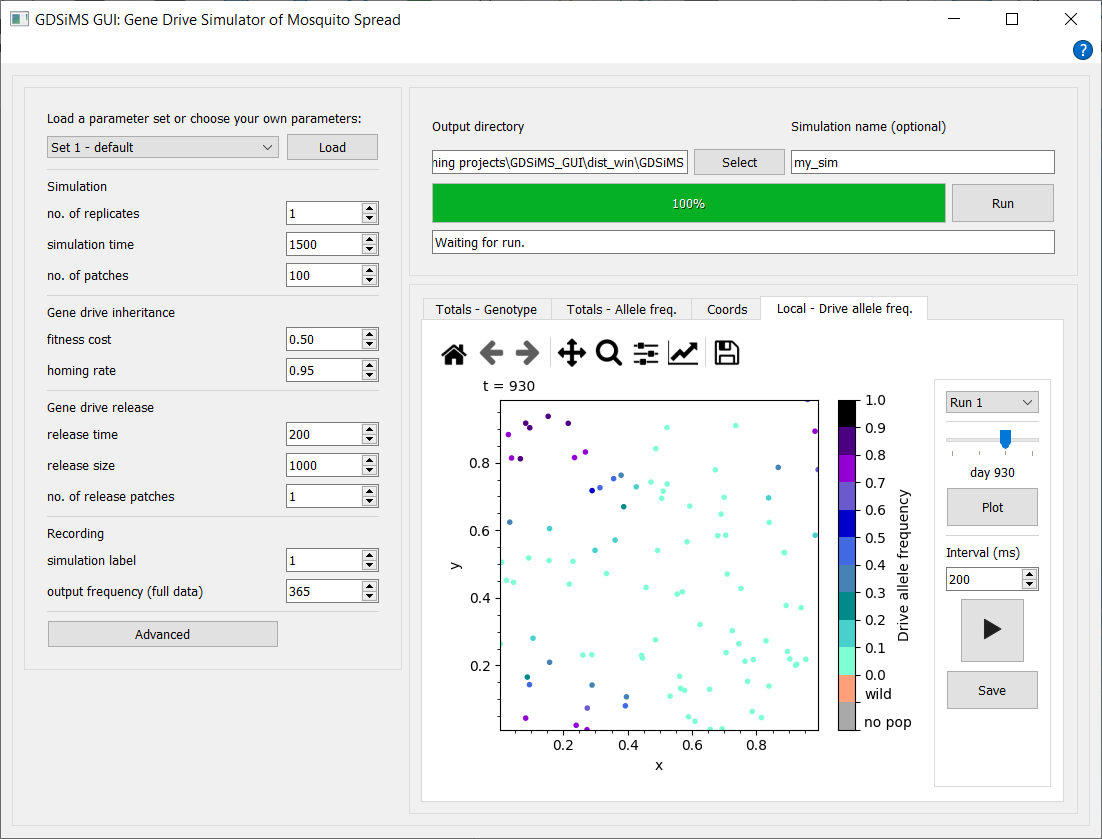

The GUI provides features to enter model parameters, run the model program and view the output data.

../_images/gui_snapshot.png
  1. Load a parameter set from available pre-defined sets by selecting one from the drop-down and clicking Load. Parameters can also be tweaked at any time before running, including those in the advanced parameter window dialog. All parameter labels have tooltips which display descriptions when you hover over them.

  2. Select an output data destination directory (i.e. folder) and choose the name for your simulation before clicking Run. The interface will give updates on the simulation’s progress whilst it’s running, and plotting options will become available upon completion of the simulation.

    Note

    The GUI won’t allow simulation folder names (in the same output destination folder) that have already been used to run a simulation. This is to prevent over-writing of files and confusion.

  3. Choose from the tabs to view different plot and animation options, interact via the plot sidebar to select plotting parameters and click Plot or Play to update the canvas.

Caution

If the simulation has issues when running, please attempt to click the Abort button (which replaces the Run button when the simulation is running) before closing the window. Aborting may take a while and may freeze the application as it’s an intensive and last-resort process but if 1-2 mins have passed with no change, force quit the application.

Output files#

By default, the output files will be created in the _internal subfolder for Windows (found in the folder you ran the GDSiMS.exe file from), and in the app’s Contents/Frameworks/ subfolder for Mac. You can access the app’s contents on Mac by right-clicking on the GDSiMS app in your Applications folder and choosing “Show Package Contents”.

../_images/gui_usage_mac_show_contents.jpg

Alternatively, an output destination directory (i.e. folder) can be selected on the GUI before running the simulation.

A simulation folder will be created at the output destination upon each simulation run. The name of this folder will be the simulation name you provided before running. This is optional and if not provided, the app will name the folder with a date-time stamp of the simulation start time.

Three objects are created in the simulation folder:

  • params.txt file - file fed into the model program.

  • paramsInfo.csv file - contains all parameter values used in the simulation and parameter descriptions.

  • output_files folder - contains data files produced by the model program. More detail on these in the model program’s Output files documentation page.

Pre-defined parameter sets#

The values for the pre-defined parameter sets in the GDSiMS GUI are below. These sets are different to the ones provided by GDSiMS. More information on model parameters can be found in the model program’s User Guide

Set 1

Set 2

Set 3

Set 4

Set 5

Set 6

Parameter

Model program equivalent

default

low fitness cost

high fitness cost

high number of release sites

low dispersal rate

high dispersal rate

no. of replicates

num_runs

1

1

1

1

1

1

simulation time

max_t

1500

1500

1500

1500

1500

1500

no. of patches

num_pat

100

100

100

100

100

100

juvenile mortality rate

mu_j

0.05

0.05

0.05

0.05

0.05

0.05

adult mortality rate

mu_a

0.125

0.125

0.125

0.125

0.125

0.125

mating rate factor

beta

100.0

100.0

100.0

100.0

100.0

100.0

egg laying rate

theta

9.0

9.0

9.0

9.0

9.0

9.0

juvenile survival factor

comp_power

0.066666667

0.066666667

0.066666667

0.066666667

0.066666667

0.066666667

juvenile min. development time

min_dev

10

10

10

10

10

10

resistance formation rate

gamma

0.025

0.025

0.025

0.025

0.025

0.025

fitness cost

xi

0.5

0.5

0.5

0.5

0.5

0.5

homing rate

e

0.95

0.95

0.95

0.95

0.95

0.95

release time

driver_start

200

200

200

200

200

200

release size

num_driver_M

1000

1000

1000

1000

1000

1000

no. of release patches

num_driver_sites

1

1

1

1

1

1

dispersal rate

disp_rate

0.01

0.01

0.01

0.01

0.01

0.01

max. dispersal distance

max_disp

0.2

0.2

0.2

0.2

0.2

0.2

aestivation rate

psi

0.0

0.0

0.0

0.0

0.0

0.0

aestivation mortality

mu_aes

0.0

0.0

0.0

0.0

0.0

0.0

start hiding date

t_hide1

0

0

0

0

0

0

end hiding date

t_hide2

0

0

0

0

0

0

start waking date

t_wake1

0

0

0

0

0

0

end waking date

t_wake2

0

0

0

0

0

0

population size factor

alpha0_mean

100000.0

100000.0

100000.0

100000.0

100000.0

100000.0

population size variance

alpha0_variance

0.0

0.0

0.0

0.0

0.0

0.0

rainfall contribution to pop. size

alpha1

0.0

0.0

0.0

0.0

0.0

0.0

rainfall seasonality

amp

0.0

0.0

0.0

0.0

0.0

0.0

responsiveness to rainfall

resp

0.0

0.0

0.0

0.0

0.0

0.0

output start (full data)

rec_start

200

200

200

200

200

200

output end (full data)

rec_end

1500

1500

1500

1500

1500

1500

output frequency (summary data)

rec_interval_global

1

1

1

1

1

1

output frequency (full data)

rec_interval_local

365

365

365

365

365

365

local site freq.

rec_sites_freq

1

1

1

1

1

1

simulation label

set_label

1

2

3

4

5

6

dispersal type

Radial

Radial

Radial

Radial

Radial

Radial

boundary type

Toroid

Toroid

Toroid

Toroid

Toroid

Toroid

rainfall file

None

None

None

None

None

None

patch coordinates file

None

None

None

None

None

None

release times file

None

None

None

None

None

None

Advanced parameter window#

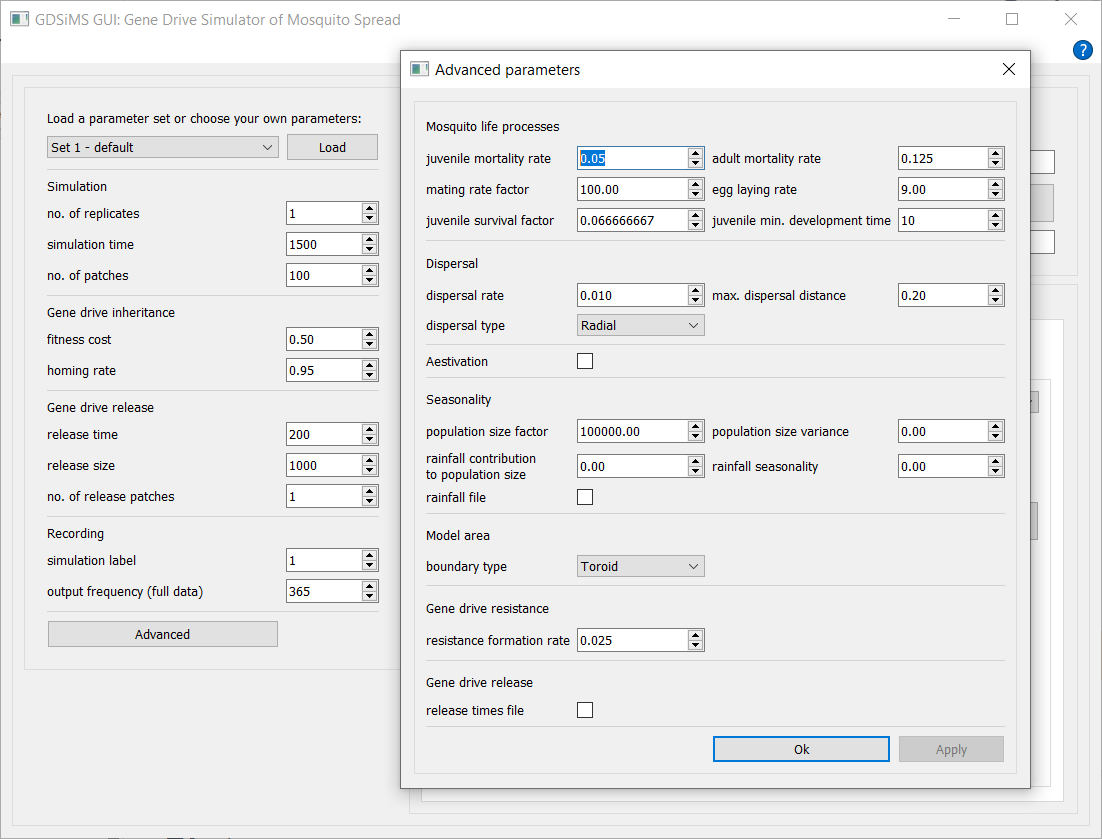

Advanced parameters can be accessed by clicking the Advanced button at the bottom of the parameters section. For more information on the model’s advanced options visit the Advanced options page.

Note that patch coordinates file selection will only show when an Edge boundary type is selected.

Also note that the default dispersal type in the GUI is Radial - this differs from GDSiMS, where the default is Distance kernel.

../_images/gui_usage_adv_window.png

Caution

If the advanced parameter window is closed with the close button, changes won’t be applied. Please use the Ok or Apply buttons to confirm changes.

Plots#

Each plot tab has a navigation bar above the plot canvas which can be used to save the figure, modify axes labels, titles, change the type of axes scales…

Each tab also has an interaction section where run number (i.e. simulation repetition index) can be selected from the drop-down and plotted. Other options are provided depending on the plot.

Current plot tabs available:

Totals - Genotype#

A plot of the total number of adult male mosquitoes over all sites for each day of the simulation. This includes plot lines for the different genotypes modelled - plot lines can be selected and re-plotted by clicking Plot again. Hover over the labels in the interaction sidebar to see descriptions for these. This plot uses data from the Totals file. W is a wild-type allele, D is a drive-type allele and R is a non-functional resistance allele.

Totals - Allele frequency#

Similar to the above, where allele frequencies for the wild-type (W), drive-type (D) and non-functional resistance alleles (R) over the six available genotype combinations and over time have been calculated.

e.g. for wild-type allele on one day

\[\text{W}_{\text{freq}} = \frac{\text{M}_{\text{WW}} + \text{M}_{\text{WD}} + \text{M}_{\text{WR}}}{\text{M}_{\text{WW}} + \text{M}_{\text{WD}} + \text{M}_{\text{DD}} + \text{M}_{\text{WR}} + \text{M}_{\text{RR}} + \text{M}_{\text{DR}}}\]

Coordinates#

Patch coordinates plot of all modelled population sites using data from the Coordinates output file.

Local - drive allele frequency#

This combines a plot and an animation option in the same plotspace. Adjust the slider and click Plot to (re-)plot a snapshot of the local populations’ (i.e. patches’) drive allele frequencies at the chosen simulation day. Alternatively, choose the frame interval for the animation and click the Play button. This animation can be saved as a GIF file by clicking Save. The plot and animation use data from the Coordinates output file and Local data file.

Note

Plots will not be plotted (or updated) until the Plot button of the respective tab is clicked.
